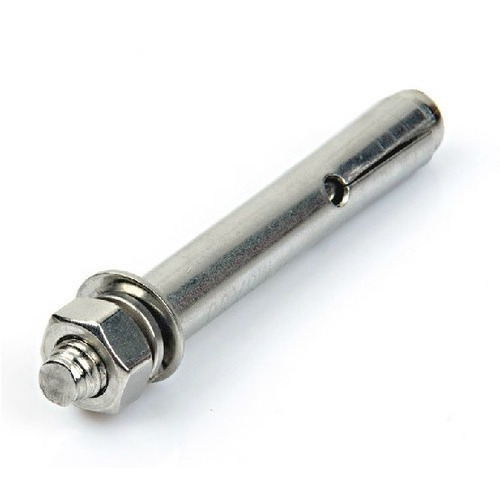

Three Leaf Rawl Bolt

Price 320.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Three Leaf Rawl Bolt Specification

Thickness
As per1 requirement or standard (commonly 6-24 mm) Gauge

Length
Available from 50 mm to 300 mm (as per size) Yard

Surface Treatment
Other

Heat Treatment
Other

Head Type
Other

Diameter
M6, M8, 1M10, M12, M16, M20 Perch

Thread Type
Metric Fine/Coarse Thread

Dimension (L*W*H)
Based on diameter and length (e.g., M6 x 60mm, M8 x 75mm, etc.) Yard

Standard
IS, DIN, or equivalent international standards

Grade
Mild Steel, Stainless Steel (A2/A4)

Use
Heavy-duty fixing in brick, concrete, and stone

Sleeve Type
Three Leaf Expandable Sleeve

Compliance
RoHS compliant (on request)

Shear Strength
Varies by size, up to 55 kN

Corrosion Resistance
High (with proper surface coating)

Reusability
Non-reusable (once expanded)

Installation
Through bolt fixing, expand on tightening

Finish
Bright/Natural/Plated

Packaging
Box/Bag or customization available

Suitable Base Material
Solid concrete, brick, stone

Tensile Strength
Varies by size, up to 80 kN

Application
Structural fastening, machinery mounting, railings, base plates

Material
Carbon Steel, Stainless Steel

Three Leaf Rawl Bolt Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque, Cash Advance (CA)

Delivery Time
as per order Week

Sample Available
Yes

Main Export Market(s)
Australia, North America, Eastern Europe, Western Europe, Africa, Central America, Middle East, South America, Asia

About Three Leaf Rawl Bolt

These Three Leaf Rawl Bolts are manufactured with the supreme quality steel and coated with zinc, which provides resistance to corrosion. These types of bolts find its application at heavy machinery, crash barriers and different fixing solutions. Three Leaf Rawl Bolts offered by us are easy to use and can be easily fitted because of this they commonly used in the concern market. They are available in pocket friendly price range. Along with this these bolts are corrosion free and provide long life services.

Versatile Applications and Strength

Three Leaf Rawl Bolts are engineered for reliable performance in structural constructions, heavy machinery installations, and railing supports. With customizable dimensions, diverse material grades, and impressive strength ratings, they accommodate a broad spectrum of heavy-duty fixing requirements in solid base materials.

Superior Corrosion Resistance

These bolts are treated with advanced surface coatings such as zinc plating or hot dip galvanization, ensuring high protection against corrosion in challenging environments. This makes them particularly suitable for both indoor and outdoor usage where longevity and safety are paramount.

Reliable Installation and Compliance

Installation is straightforward through-bolt fixing, and the expandable sleeve offers solid anchoring upon tightening. Manufactured to strict IS and DIN standards and available RoHS compliant on request, the bolts meet rigorous quality and environmental benchmarks for global markets.

FAQs of Three Leaf Rawl Bolt:

Q: How do I properly install a Three Leaf Rawl Bolt?

A: To install, drill a correctly sized hole in a solid base material such as concrete, brick, or stone, insert the bolt completely, and tighten the hex head. Tightening expands the three-leaf sleeve, anchoring the bolt securely. Installation uses a through-bolt method, ensuring a reliable heavy-duty fixing.

Q: What materials and finishes are available for these bolts?

A: Three Leaf Rawl Bolts come in carbon steel and stainless steel (grades A2 and A4), with finishes including bright, natural, plated, zinc plated, hot dip galvanized, or as specified. This versatility helps match corrosion resistance and aesthetic needs for varied applications.

Q: When should I use a Three Leaf Rawl Bolt instead of other anchors?

A: Choose Three Leaf Rawl Bolts when you require high shear and tensile strength for heavy-duty fixing in solid substrates like concrete, stone, or brick. They are ideal for structural applications, machinery mounting, or where reliable long-term anchoring is essential.

Q: Where can these bolts be used effectively?

A: They are designed for use in solid concrete, brick, or stone bases. Typical installations include structural frameworks, machinery base plates, railings, signage, and infrastructure projects where secure fastening and load-bearing are critical.

Q: What are the benefits of the three-leaf expandable sleeve design?

A: The three-leaf expandable sleeve ensures uniform expansion and superior grip within the base material. This maximizes load transfer, reduces the risk of pullout, and provides consistent performance across diverse installation scenarios.

Q: Are these bolts reusable after installation?

A: No, Three Leaf Rawl Bolts are designed for permanent applications. Once expanded, they cannot be reused, ensuring the integrity and security of the original installation.

Q: What compliance and customization options are available?

A: The bolts can be supplied RoHS compliant upon request, meeting international environmental safety standards. Packaging can be customized to suit project needs, and sizes or finishes are available to order in accordance with IS, DIN, or equivalent standards.
